Industrial Dry Ice Pelletizer 200kg/h



The YJ.GB200P is a fully automatic industrial dry ice pelletizer designed for high-volume, reliable dry ice production. With a maximum output of 200 kg/h and a superior LCO₂-to-dry-ice conversion rate of 40–45%, it is the ideal solution for businesses that require a stable, on-site dry ice supply for cleaning, cold-chain logistics, or industrial refrigeration.

Built with a robust modular design, PLC + smart touch-screen control, and interchangeable extrusion dies, the YJ.GB200P delivers uniform, high-density dry ice pellets (3–19 mm) with minimal manpower. Its compact footprint, energy-efficient operation, and CE/RoHS-certified safety features make it one of the most trusted 200 kg/h pelletizers on the market.



• 200 kg/h High Output – Perfect for medium to large-scale dry ice cleaning teams and logistics companies.
• 40–45% High Conversion Rate – Thicker 316 stainless steel cylinder + precision multi-filter system captures more CO₂ snow.
• Smart Touch-Screen + PLC Automation – One-button start, real-time monitoring, E-Stop and alarm system.
• Interchangeable Extrusion Dies – Switch between 3 mm cleaning pellets and 16–19 mm transportation blocks in minutes.
• 50% Thicker Cylinder Wall – Built for continuous 24/7 operation with working load < 60%.
• Premium Components – High-pressure piston pump, branded motor, oil cooler, and neatly arranged electrical cabinet.
• Compact & Ventilated Steel Structure – Excellent heat dissipation and small footprint.

• Dry ice blasting & cleaning (molds, electrical cabinets, automotive, food processing equipment)
• Cold-chain transportation (seafood, vaccines, biologics)
• Food-grade preservation and flash freezing
• Laboratory & medical sample storage
• Industrial refrigeration and metal shrinkage fitting

• YJ.GB200P Dry Ice Pelletizer: 1 unit
• Standard extrusion die (choose one: 3/6/9/16/19 mm): 1 pc
• 3 m high-pressure low-temp LCO₂ hose: 1 pc
• 5 m waterproof power cord: 1 pc
• High-pressure cryogenic ball valve: 1 pc
• Ice outlet elbow: 1 pc
• Mould stopper: 1 pc
• Dry ice shovel: 1 pc
• Anti-freezing gloves: 1 pair
• Spare sealing rings: 1 set
• User manual & quality certificate: 1 set

• Machine body logo & color customization (perfect for OEM partners)
• Touch-screen language (English, Spanish, French, Arabic, etc.)
• Plug type & power cord length
• Explosion-proof gas hose length
• Dry ice delivery hose length (up to 20 m)
• Full-machine customization according to technical parameters

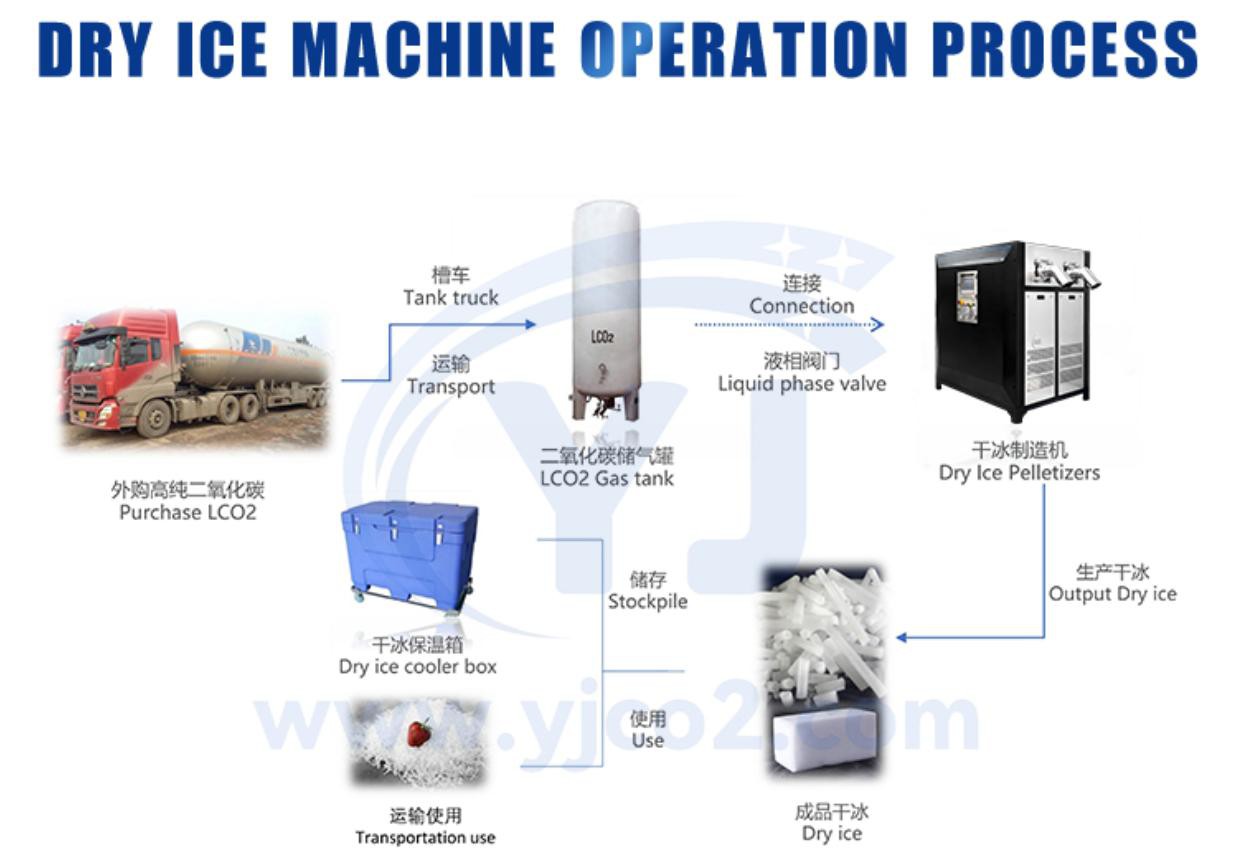

1. Connect the LCO₂ tank to the machine using the supplied high-pressure hose and open the cryogenic ball valve.
2. Plug in the power cord and turn on the main switch.
3. Select the desired die (3–19 mm) and install it securely.
4. On the touch screen, press "Start" – the system automatically adjusts pressure and begins production.
5. Dry ice pellets exit continuously; collect them with the insulated box or directly feed your blaster.
6. When finished, press "Stop" and close the liquid CO₂ valve.

The entire process requires only one operator and takes less than 5 minutes to start producing.

YJCO2 is one of China's leading manufacturers of dry ice equipment, trusted by over 3,000 customers including Foxconn, China Aerospace, Huawei, BYD, and BOE. With a 5,000 m² modern factory, multiple patented technologies, and the most complete dry ice industry chain in China, we provide true one-stop solutions: liquid CO₂ sourcing guidance, pelletizers, blasting machines, storage systems, and worldwide after-sales support.

• Official qualified supplier to Foxconn and China Aerospace
• Full range from raw materials to complete systems
• 10–15 days standard delivery (1–2 days for stock units)
• Global technical support & spare parts supply
• Free cleaning effect testing (send us your sample)
• OEM/ODM capabilities with logo & language customization
• CE, RoHS, ISO9001 certified quality

What is the real dry ice output per hour?

Up to 200 kg/h under standard conditions (incoming LCO₂ pressure ≥ 2.0 MPa, temperature ≤ -20 °C).

How much LCO₂ is consumed to produce 200 kg of dry ice?

Approximately 450–500 kg of liquid CO₂ per hour (40–45% conversion rate).

Can I produce different pellet sizes with one machine?

Yes, simply change the extrusion die (3–19 mm available).

What power supply is required?

Standard 380V 50/60Hz three-phase; 220V versions available on request.

Is the machine suitable for continuous 24/7 operation?

Yes, reinforced cylinder and oil cooling system support long-term continuous running.

Do you provide a CO₂ storage tank?

The machine has a built-in 150 L buffer tank; external large tanks can be connected.

What is the warranty period?

12 months for the complete machine, lifetime technical support.

Can I test the cleaning effect before buying?

Absolutely free – send us your workpiece and we will perform a cleaning test and send video results.
