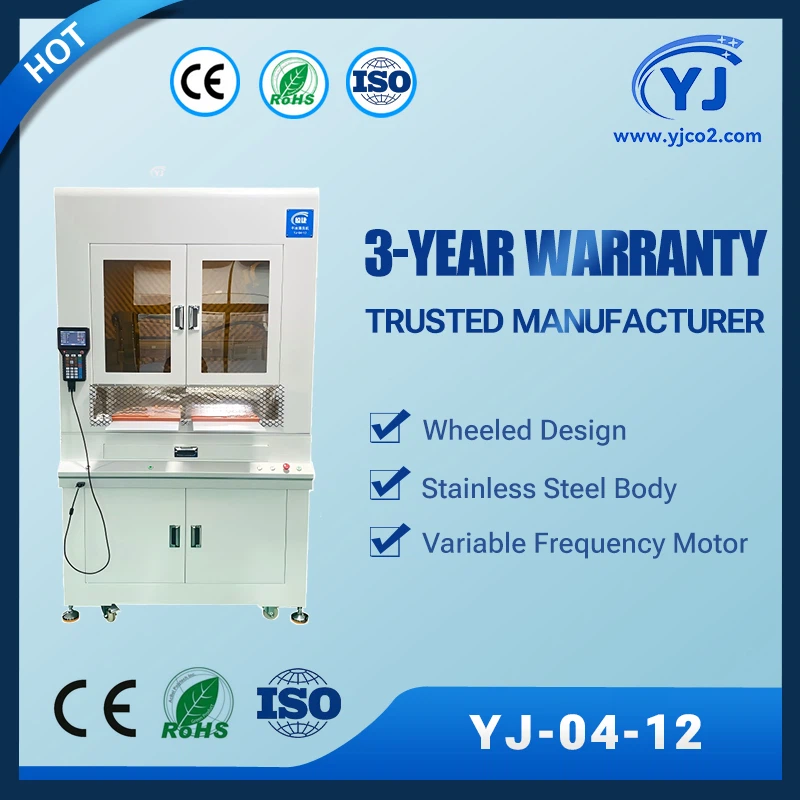

YJ-04-12
Fully Automatic Dry Ice Cleaning Machine
● Utilizing innovative technology, it achieves 360-degree fully automatic cleaning, ensuring every corner is spotless and enhancing product quality standards.
● The dual-station design, combined with flexible manual programming functions, doubles the efficiency of automated operations compared to traditional methods, accelerating the production process.
● It is widely used for PCBA and PCB flux cleaning in electronics factories, as well as burr removal in the plastic and hardware industries, meeting diverse production needs.
● It can easily integrate with various automated production lines, ensuring a smooth and efficient production process, supporting enterprises in upgrading to intelligent manufacturing.
Cost-saving
Wide applicability
Efficient and fast
Deep cleaning
Environmentally friendly
Safe and reliable
Stable and Genuine Properties
| Technical Specifications | |
| Product Parameter | |
| Product model | YJ-04-12 |
| Product size | 116.4 * 76.4 * 204.5 cm |
| Net weight (N.W.) | 224 kg |
| Voltage and current | AC110-240V (50-60Hz) |
| Motor rated power | 400 W |
| Floor area | 1.0 ㎡ |
| Minimum operation area | 2.0 ㎡ |
| Moving mode: | Wheel |
| Control mode: | Automatic |
| Dry ice particle size | 0.05 - 0.1 mm & 0.2 - 0.6 mm Adjustable |
| Equipment Performance | |
| Ice output adjustment range | 0 - 0.65 kg/Min |
| Ice output pressure adjustment range | 0.25 - 1.0 MPa |
| Dry ice particle adjustment range | 0.05 - 0.6 mm |
| Effective spray distance | 50 - 200 mm |
| Ice adding cycle | 30 - 150 Min/Time |
| Ice mixing method | Knife spiral cutting + Ice roller with ice |
| Anti-static performance | The static value during cleaning is below 75V |
| Five-axis Platform Parameter | |
| Travel data | XYZR1R2: 700*300*300*100*180° |
| Control mode | Self-developed control system |

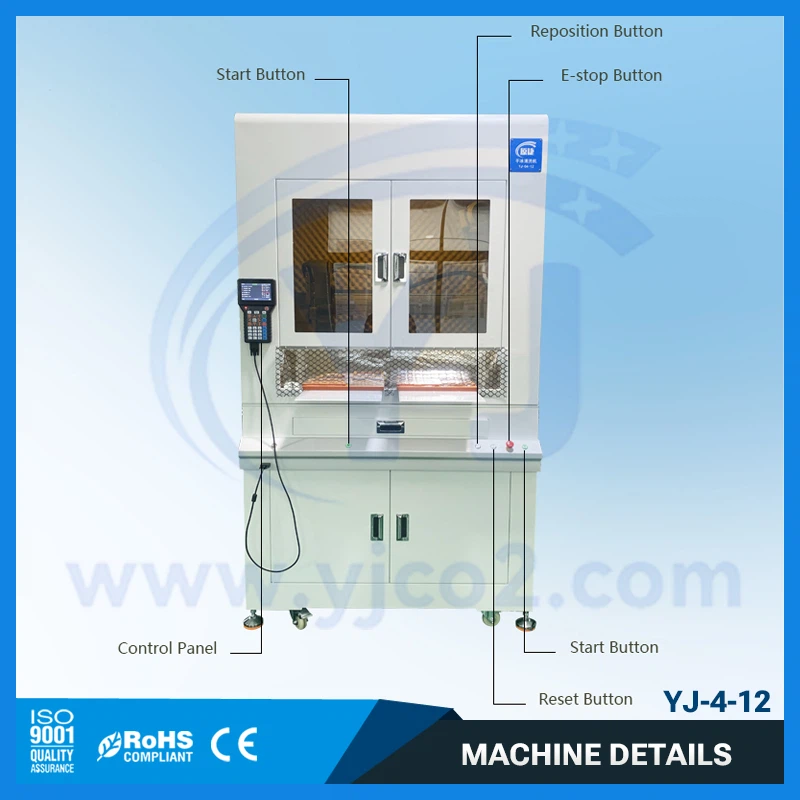

| Operation mode | Handheld programmer + Button |
| Programming mode | Trajectory segment + Point |
| Number of programs | 99+ |
| X.Y. axis drive mode | Closed-loop motor + Hiwin guide rail |
| X.Y axis maximum movement speed | ≤300 mm/Sec |
| Repeat positioning accuracy | ±0.02 mm |
| Power supply | AC110-240V (50-60HZ) |
| Air source | 4-6 Kgf/cm² |
| Consumable Parameter | |
| Dry ice | 140*140*250 mm Block dry ice |
| Dry ice tank capacity | 11 kg |
| Dry ice consumption | 0-0.65 kg/Min |
| Air requirements | 0.25-1.0 MPa (2.5 -10Bar) |
| Air consumption | ≤0.8 m³/Min |
| Air compressor configuration | ≥7.5 KW (10hp) |

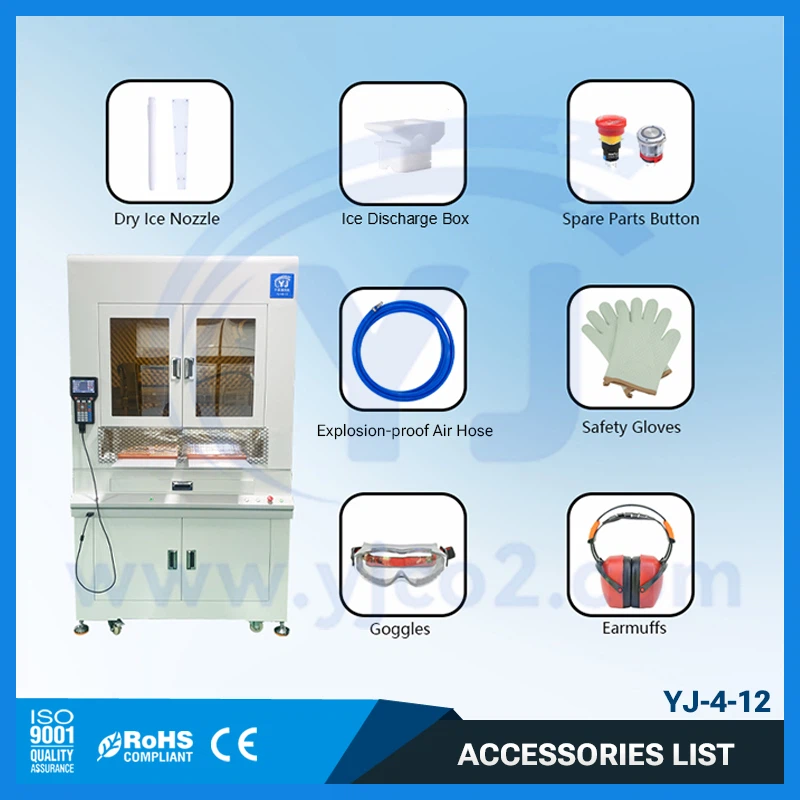

| Packing List | |
| Packing | Wooden case packing |
| Dry ice cleaning machine | 1 Unit |
| Aerodynamic nozzle | 1 Piece |
| Professional low-temperature dry ice delivery hose | 1 Piece |
| Explosion-proof air pipe | 1 Piece |
| Goggles, gloves, earmuffs | 1 Piece each |
| Main Uses | |
| Integrated circuit industry | Clean PCBA flux Clean PCBA residue |
| Manufacturing plants | Clean plastic burrs Clean gear burrs Clean hardware burrs Deburring for Various Precision Components |
| Automated Production Line | Surface cleaning of products on automated production lines. Cleaning of processing residues from various stages of automated production lines. |
