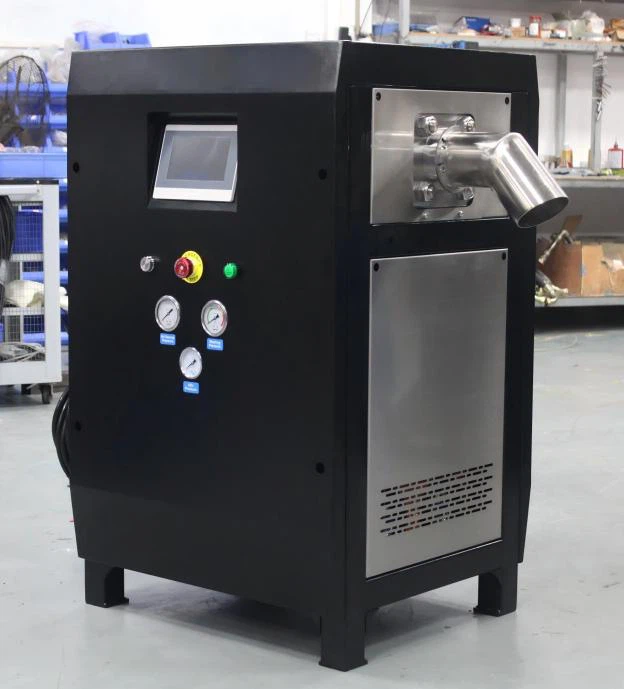

The YJ.GB Series 88 lbs/hr Dry Ice Pelletizer Machine is a high-performance, industrial-grade dry ice production system designed for efficient, continuous operation. Featuring a compact structure and a powerful PLC automatic control system, it allows easy switching between extrusion dies to produce dry ice pellets in multiple diameters (3 mm, 6 mm, 9 mm, 16 mm, and 19 mm).
Engineered with precision components, stainless-steel cylinders, and an optimized feeding system, this dry ice pelletizer ensures stable output, high yield, and uniform pellet density-making it ideal for laboratories, logistics, dry ice cleaning, food transport, and industrial applications.
Product Specifications
|
Parameter |
Details |
|
Dry Ice Pellet Size |
3 mm, 6 mm, 9 mm, 16 mm, 19 mm (cylindrical) |
|
Conversion Rate |
40–45% |
|
Dry Ice Density |
1.3–1.45 g/cm³ |
|
Working Pressure |
15–25 MPa |
|
Voltage |
380 V / 50–60 Hz / 3P+PE (220 V customizable) |
|
Power |
3.0 kW |
|
Capacity |
40 kg/h |
|
Hydraulic Oil Tank |
50 L |
|
Net Weight |
230 kg |
|
Dimensions (L×W×H) |
70 × 64 × 115 cm |
|
Gross Weight |
290 kg |
|
Packing Size (L×W×H) |
80 × 75 × 135 cm |
Product Advantages
- High-Precision Stainless-Steel Construction
The extrusion cylinder is made of 316 stainless steel, with a wall thickness 50 % greater than standard models, providing superior durability, corrosion resistance, and pressure stability.
- Advanced Mold Design for High Conversion
The thickened precision mold is processed with high-accuracy boring technology, ensuring perfect roundness, wear resistance, and long-term stability.
- Higher LCO₂ Conversion Efficiency
The reinforced cylinder body with multiple stainless-steel filter plugs captures more CO₂ snow, significantly improving conversion rate from LCO₂ to solid dry ice.
- Reliable Continuous Operation
Designed to keep working load under 60 %, enabling continuous output with stable performance.
- Premium Hydraulic & Electronic Components
Equipped with first-class brand motors, valves, and electronic control units, ensuring smooth operation and long service life.
- User-Friendly PLC Control System
The intuitive PLC interface enables automatic monitoring, simple parameter adjustment, and safe operation for all experience levels.
Application Scenarios
- In-House Dry Ice for Cleaning: Produce 3 mm pellets on-demand to feed YJCO2 blasters.
- Cold-Chain Logistics: 16/19 mm blocks for seafood, vaccines, and biologics transport.
- Medical & Lab: 9 mm pellets stored in -86 °C freezers for sample preservation.
- Food Processing: 6 mm pellets for flash-freezing while retaining texture.
- Industrial Maintenance: Closed-loop solution with YJCO2 cleaning machines.
Packing List
|
Item |
Qty |
|
Main Machine |
1 |
|
Standard Die (3/6/9/16/19 mm, choose one) |
1 set |
|
5 m Waterproof Power Cord |
1 |
|
3 m High-Pressure Cryogenic LCO₂ Hose |
1 |
|
Die Stopper |
1 |
|
Ice Outlet Elbow |
1 |
|
High-Pressure Cryogenic Ball Valve |
1 |
|
Ice Scraper |
1 |
|
Anti-Freeze Gloves |
1 pair |
Customization Options
- Machine body Logo (OEM branding)
- Body color (brand VI or site matching)
- Control panel language (EN/FR/ES/AR etc.)
- Plug type (EU/US/UK/AU)
- Power cord length
- Explosion-proof gas hose length
- LCO₂ delivery hose length
- Full-machine specs (voltage, pressure, structure)
Operation Instructions
- Setup: Connect 3 m cryogenic hose from LCO₂ tank liquid-phase valve to machine inlet; plug in 5 m power cord.
- Power On: Wear anti-freeze gloves, start PLC, select die size (3/6/9/16/19 mm).
- Production: Slowly open ball valve; LCO₂ depressurizes, forms snow, and extrudes into pellets-collect with scraper into insulated box.
- Die Change: Stop → remove stopper → swap die → reinstall (<5 min).
- Shutdown: Close valve → idle 30 s → power off.
- Storage: Use dedicated box (5–10% daily loss) or -86 °C freezer (<0.6% daily loss).
Why Choose YJCO2 as Your Dry Ice Pelletizer Supplier
YJCO2 is China's leading dry ice equipment manufacturer, trusted by Foxconn (qualified supplier), CASC (sole listed vendor), and 70+ public companies including Huawei, BYD, and BOE-serving 3,000+ global clients. Our 5,000 m² smart factory and modular process guarantee batch consistency; patented automation delivers top conversion and stability; full-chain integration offers "LCO₂ + pelletizer + cleaning system" turnkey solutions anywhere in the world.
Service Advantages:
- 10–15 day lead time (1–2 days for stock)
- 50% deposit + 50% balance payment
- Free cleaning trial (send sample parts, receive video report in 3 days)
- Lifetime technical support & global service network
- Full OEM/ODM customization
Our Qualifications
FAQ
Q: Can one machine produce multiple pellet sizes simultaneously?
A: One die at a time; swap in <5 min to switch between 3/6/9/16/19 mm.
Q: What does 40–45% conversion mean?
A: 1 ton LCO₂ yields 400–450 kg dry ice-well above industry 35% average.
Q: Do I need my own LCO₂ tank?
A: Yes, with liquid-phase valve; we can supply complete tank + pelletizer packages.
Q: Power requirements?
A: Standard 380 V 3-phase; 220 V single-phase available; only 3 kW.
Q: Best storage to minimize loss?
A: -86 °C ultra-low freezer (<0.6% daily); standard box 5–10% daily.
Q: Export-ready for Europe?
A: CE-certified; customizable EU plug, English panel, multilingual manuals.
Q: How to test cleaning performance?
A: Pay sample fee, ship parts-we return 3-day video + report.
Q: Warranty terms?
A: 12 months whole machine, 24 months core components (cylinder, pump); lifetime paid repair.
