Industrial equipment gets dirty in predictable ways. Oil builds up on production lines. Carbon deposits form on molds and heat exchangers. Dust, adhesive residue, and release agents accumulate over time. If these contaminants are not removed, efficiency drops and maintenance costs rise.
Traditional cleaning methods-such as chemical solvents, water washing, or abrasive blasting-can solve part of the problem. But they also introduce new risks. Chemicals create waste streams. Water can damage electrical components. Abrasive media may wear down sensitive surfaces.
This is where dry ice cleaning comes in.
Dry ice cleaning, also called dry ice blasting or CO₂ blasting, is a non-abrasive industrial cleaning method that uses compressed air to accelerate solid carbon dioxide (CO₂) pellets toward a contaminated surface. When the pellets impact the surface, they remove contaminants without leaving residue or damaging the underlying material.
Because the dry ice sublimates directly into gas, the process produces no secondary blasting media and no moisture. For many manufacturers, this makes dry ice cleaning one of the most efficient and controlled cleaning technologies available today.
What Is Dry Ice?
Before discussing the cleaning process, it helps to understand the material itself.
Dry ice is the solid form of carbon dioxide (CO₂). Unlike ordinary ice made from water, dry ice does not melt into liquid. Instead, it transitions directly from solid to gas through a process called sublimation.
Key physical properties of dry ice include:
|
Property |
Value |
|
Chemical composition |
Solid CO₂ |
|
Temperature |
−78.5°C (−109.3°F) |
|
Phase transition |
Solid → Gas (sublimation) |
|
Residue after sublimation |
None |
This extremely low temperature and direct phase change make dry ice useful in several applications:
- Industrial cleaning
- Cold chain transportation
- Laboratory cooling
- Food preservation
In the context of cleaning, the important characteristics are its low temperature, soft hardness, and ability to sublimate instantly. These properties allow it to remove contaminants without acting like an abrasive material.
In short, dry ice behaves very differently from traditional blasting media-and that difference is what makes dry ice cleaning possible.
What Is Dry Ice Cleaning?
Dry ice cleaning is an industrial cleaning process that uses compressed air to propel dry ice pellets onto a contaminated surface to remove residues, oils, coatings, and other deposits.
The process works similarly to other media blasting methods, but with one key difference: the blasting media disappears after impact.
In a typical system:
- Dry ice pellets are fed into a blasting machine.
- Compressed air accelerates the pellets through a hose and nozzle.
- The pellets strike the contaminated surface at high speed.
- Contaminants are dislodged and lifted away from the substrate.
Because the pellets immediately convert to CO₂ gas, there is no leftover blasting media to clean up.
Dry ice cleaning is commonly referred to by several names in industry:
- Dry ice blasting
- CO₂ blasting
- Cryogenic cleaning
All of these terms describe the same basic process: using solid CO₂ as a cleaning medium accelerated by compressed air.
For manufacturers dealing with complex equipment or sensitive components, the biggest advantage is simple. The cleaning media disappears after doing its job.
How Does Dry Ice Cleaning Work?
Dry ice blasting removes contaminants through a combination of three physical effects. Understanding these mechanisms helps explain why the process works without damaging surfaces.
Impact – Pellet Kinetic Energy
The first mechanism is simple kinetic energy.
Dry ice pellets are accelerated by compressed air through specially designed nozzles. When the pellets strike the contaminated surface, the impact energy helps break the bond between the contamination and the substrate.
Even at high velocity, dry ice remains a relatively soft material. On the Mohs hardness scale, it is much softer than sand, glass beads, or metal shot. As a result, the impact removes contaminants but generally does not erode the base material.
This is one reason dry ice blasting is considered a non-abrasive cleaning method.
Cold – Thermal Shock Effect
The second mechanism comes from temperature.
Dry ice is extremely cold at −78.5°C. When pellets hit a warmer surface, the rapid temperature change causes contaminants to contract and become brittle.
This thermal shock creates micro-cracks between the contaminant layer and the underlying material. Oils, coatings, and carbon deposits lose their adhesion to the surface.
Once this bond weakens, the contamination can be removed much more easily by the mechanical impact of the pellets.
Expansion – Sublimation Effect
The third mechanism occurs when dry ice changes phase.
Upon impact, the pellets rapidly sublimate from solid to gas. During this transition, the volume of CO₂ expands dramatically.
This expansion produces a localized lifting effect at the interface between the contaminant and the surface. The expanding gas helps push loosened particles away from the substrate.
Because the dry ice becomes gas immediately, the only remaining material after cleaning is the dislodged contamination itself.
These three effects-impact, thermal shock, and sublimation-work together. The result is an effective cleaning process that removes residues without grinding or soaking the underlying surface.
Key Advantages of Dry Ice Cleaning
Dry ice cleaning has gained widespread adoption in manufacturing because it solves several problems associated with traditional cleaning methods.
Non-Abrasive and Surface-Safe
Dry ice pellets are much softer than common blasting media. This allows them to clean sensitive equipment without damaging the substrate.
Typical examples include:
- Injection molds
- Electrical components
- Precision tooling
- Production machinery
The process removes contaminants while preserving surface dimensions and tolerances.
No Secondary Waste
One of the most important advantages is the absence of blasting media residue.
Traditional blasting processes leave behind spent media that must be collected and disposed of. Dry ice sublimates completely, leaving only the removed contamination.
This reduces:
- Cleanup time
- Waste handling
- Disposal costs
For many facilities, this alone can significantly simplify maintenance procedures.
Faster Cleaning and Reduced Downtime
Dry ice blasting is often performed without disassembling equipment.
Because the process is dry and non-conductive, many machines can be cleaned in place. In some applications, equipment can even remain warm during cleaning.
This reduces production interruptions and shortens maintenance windows.
Environmentally Responsible Process
Dry ice cleaning typically eliminates the need for chemical solvents and large volumes of water.
In addition, most industrial dry ice is produced from recovered CO₂ from existing industrial processes. The gas is captured, compressed, and converted into solid form.
As a result, dry ice blasting can help facilities:
- Reduce chemical usage
- Reduce wastewater
- Reduce hazardous cleaning residues
For companies focused on sustainable operations, this is an important consideration.
Overall, the advantages of dry ice cleaning come from one simple fact: the cleaning media disappears after use.
Dry Ice Cleaning vs Traditional Cleaning Methods
Manufacturers evaluating cleaning technologies often compare dry ice blasting with other common methods.
The differences are easier to understand in a direct comparison.
|
Cleaning Method |
Main Limitations |
Dry Ice Cleaning Advantage |
|
Sandblasting |
Abrasive, damages surfaces |
Non-abrasive |
|
Chemical cleaning |
Hazardous chemicals, waste disposal |
No chemicals required |
|
Pressure washing |
Water damage risk, drying required |
Completely dry process |
|
Manual scraping |
Labor intensive, inconsistent |
Faster and more uniform cleaning |
Each method still has its place in certain applications. However, dry ice cleaning becomes particularly attractive when surfaces must be cleaned without abrasion, moisture, or chemical exposure.
This combination of benefits is why many manufacturers adopt dry ice blasting for routine maintenance.
Common Applications of Dry Ice Cleaning
Dry ice blasting is used across a wide range of industries. The technology is especially valuable in environments where equipment is complex, sensitive, or difficult to disassemble.
Automotive Manufacturing
Automotive production lines rely on continuous operation. Dry ice blasting is commonly used to clean:
- robotic welding equipment
- assembly fixtures
- stamping dies
- production conveyors
The process removes grease, adhesive residue, and carbon buildup without stopping the entire line for long periods.
Plastic and Rubber Mold Cleaning
Injection molds accumulate release agents, resin deposits, and carbonized material during production.
Dry ice blasting allows molds to be cleaned without removing them from the press. This shortens cleaning cycles and protects precision mold surfaces.
Food Processing Equipment
Food manufacturers often avoid water or chemicals during cleaning due to contamination risks.
Dry ice blasting is well suited for:
- conveyors
- packaging equipment
- mixers and processing tools
The dry process helps maintain hygienic conditions without introducing moisture into the production area.
Electrical and Electronic Equipment
Because dry ice is non-conductive and moisture-free, it can be used to clean many electrical components.
Typical applications include:
- control cabinets
- electrical panels
- motors and generators
- circuit assemblies
The absence of water makes dry ice cleaning particularly useful in facilities with sensitive electrical infrastructure.
Across these industries, the main advantage remains the same: effective cleaning with minimal disruption to equipment.
What Equipment Is Needed for Dry Ice Cleaning?
A typical dry ice blasting system consists of several key components.

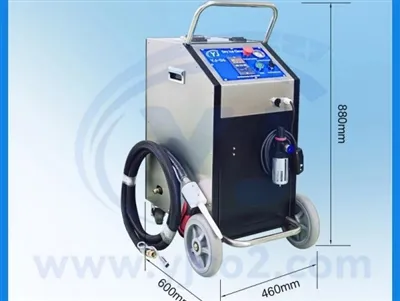

The blasting machine is the core of the system. It controls:
- dry ice feed rate
- blasting pressure
- pellet acceleration
Industrial machines typically include a hopper, air control system, hoses, and interchangeable nozzles.
Compressed Air Supply
Compressed air provides the energy that accelerates the pellets.
Typical industrial systems require airflow between 80–100 CFM at around 80 PSI, though exact requirements depend on the application and machine design.
Dry Ice Pellets
Dry ice blasting typically uses 3 mm pellets, roughly the size of rice grains. These pellets provide sufficient mass and density for most cleaning tasks.
Smaller particle systems may also use micro-particles for delicate surfaces.
Dry Ice Pelletizer (Dry Ice Production Machine)
Many industrial users choose to produce dry ice on site using a dry ice pelletizer.
This equipment converts liquid CO₂ into dry ice pellets through compression and extrusion. On-site production provides several advantages:
- consistent pellet supply
- lower long-term operating cost
- control over pellet size and production volume
For facilities that use dry ice regularly, pelletizers can become an important part of the overall cleaning system.
Together, these components form a simple but effective setup for industrial dry ice blasting operations.
Is Dry Ice Cleaning Safe?
Dry ice blasting is generally safe in typical industrial environments when proper procedures are followed.
Operators should follow standard safety practices, including:
- adequate ventilation
- protective gloves and eye protection
- hearing protection when using blasting equipment
Because CO₂ is heavier than air, special attention should be paid to confined spaces, where gas accumulation could reduce oxygen levels.
With proper ventilation and operator training, dry ice blasting can be integrated safely into routine maintenance operations.
Is Dry Ice Cleaning Environmentally Friendly?
Dry ice cleaning is widely considered an environmentally responsible cleaning method.
Several factors contribute to this:
- Dry ice sublimates completely and produces no secondary blasting waste
- The process often eliminates chemical cleaning agents
- It significantly reduces water usage
- Dry ice is commonly produced from recovered industrial CO₂
While proper ventilation and handling procedures are still required, the process avoids many environmental challenges associated with traditional cleaning methods.
For manufacturers aiming to reduce chemical usage and waste streams, dry ice blasting provides a practical alternative.
Conclusion
Dry ice cleaning is a modern industrial cleaning technology that combines mechanical impact, thermal shock, and sublimation to remove contaminants from surfaces.
Unlike traditional cleaning methods, it does not rely on abrasive media, water, or chemical solvents. The dry ice pellets disappear after impact, leaving only the removed contamination behind.
For many industries-including automotive manufacturing, plastics processing, food production, and electronics-this approach offers a reliable way to clean equipment while minimizing downtime and waste.
As manufacturing environments become more automated and environmentally regulated, dry ice blasting continues to gain attention as an efficient and controlled cleaning solution.
