Dry ice blasting technology brings a revolutionary change to wave soldering equipment cleaning: 80% improvement in efficiency and zero environmental pollution.
The YJ-06 multifunctional dry ice cleaning machine, independently developed and manufactured by YJCO2, has been widely adopted in China's electronic manufacturing industry, particularly excelling in the maintenance and cleaning of wave soldering equipment. This machine not only significantly enhances cleaning efficiency but also gains high recognition across the industry for its environmentally friendly and non-destructive features.
This article provides a detailed presentation of the actual application data and cleaning performance of the YJ-06 multifunctional dry ice cleaning machine.
Cleaning efficiency greatly improved, costs significantly reduced
It is reported that traditional cleaning of wave soldering equipment typically relies on chemical solvents or manual wiping, which not only takes 2–4 hours but also tends to leave chemical residues that can affect soldering quality. In contrast, the YJ-06 multifunctional dry ice cleaning machine uses high-speed blasting of -78.5°C dry ice pellets, applying the principle of thermal expansion and contraction to rapidly shrink and remove contaminants such as solder slag and flux residues. Meanwhile, the dry ice sublimates into gas, leaving no secondary pollution.
Actual cleaning data show that
- Cleaning equipment: YJ-06 multifunctional dry ice cleaning machine
|
Operating voltage |
AC110-240V (50-60Hz) |
|
Motor rated power |
330W |
|
Consumable |
3 mm Diameter dry ice pellets |
|
Dry ice blasting particle size |
0.2 - 1.5 mm |
|
Ice output adjustment range |
0.3kg/min |
|
Air requirements |
0.25 - 1.0 MPa (2.5-10Bar) |
|
Air consumption |
≤ 0.6 m³/Min |
|
Air compressor configuration |
≥ 7.5 KW (10hp) |
- Dry ice consumption: Cleaning a standard wave soldering machine requires only 5–10 kg of dry ice. Based on the average dry ice price of 5 RMB/kg in China, the total consumable cost is under 50 RMB (approximately USD 7).
- Cleaning time: The entire cleaning process is reduced to 20–30 minutes, improving efficiency by over 80% compared with traditional methods.
- Labor cost: Semi-automated cleaning requires only one operator per cleaning session, reducing labor input by 50%.
Remarkable cleaning results: enhanced equipment lifespan and improved product quality
Comparison results show:

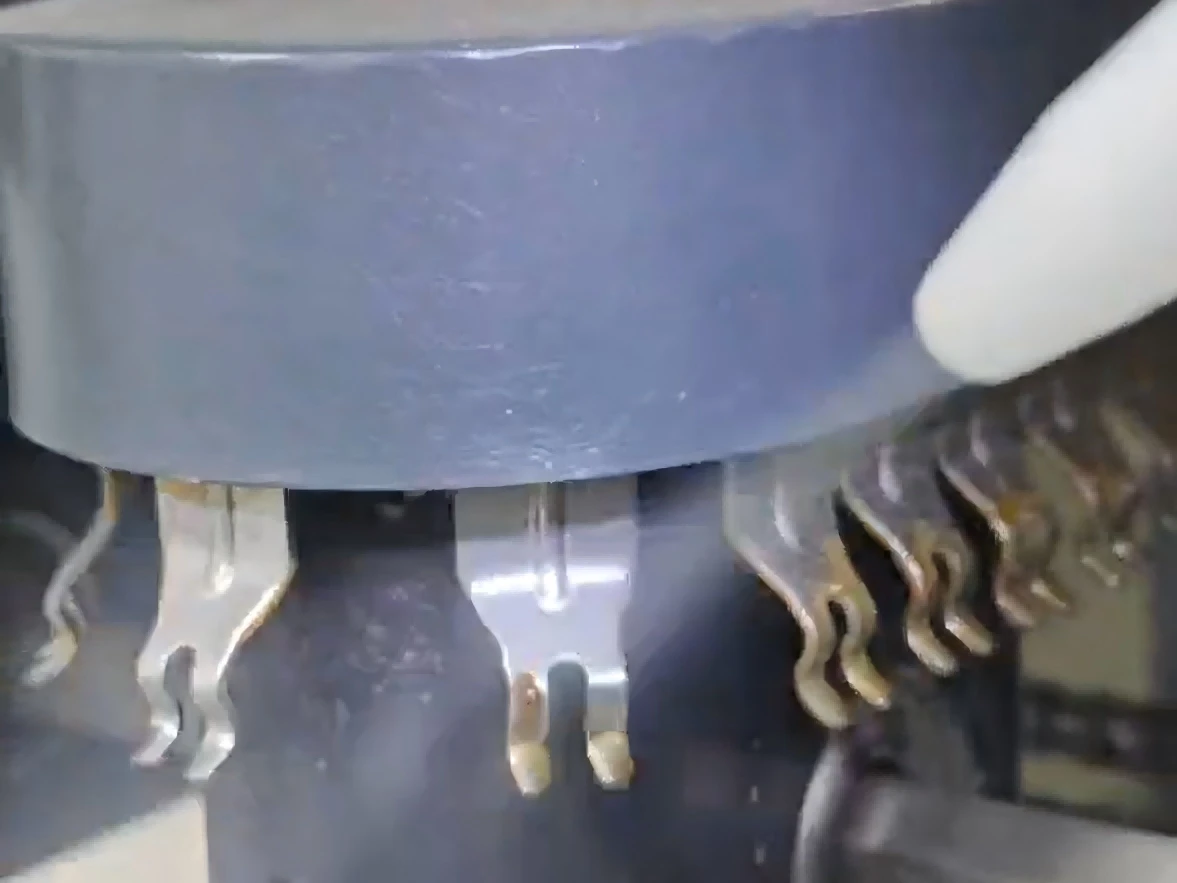

- Cleanliness: The removal rate of contaminants on key components such as soldering nozzles and guide rails exceeds 99%, with no chemical residues, effectively preventing defects such as cold solder joints and solder bridging from the source.
- Equipment protection: Dry ice blasting is a physical cleaning process that causes no abrasion to the metal structure of the equipment, effectively extending the service life of wave soldering machines.
- Environmental safety: The cleaning process requires no production shutdown or cooling, and dry ice is non-toxic and non-flammable, completely eliminating the environmental pollution risks associated with chemical cleaning.
The production manager of an electronics manufacturing company in Shenzhen stated:
"Since adopting the YJ-06 dry ice cleaning machine for wave soldering equipment cleaning, our equipment failure rate has dropped by 40%, the product defect rate has decreased from 0.5% to below 0.1%, and annual maintenance costs have been reduced by more than 200,000 RMB."
Broad technological prospects - poised to become an industry standard
At present, the YJ-06 multifunctional dry ice cleaning machine has been widely adopted in high-end manufacturing sectors such as telecommunication equipment and automotive electronics. As electronic manufacturing continues to evolve toward greater precision and environmental sustainability, dry ice blasting technology is expected to become the industry-standard solution for wave soldering maintenance.
With its advantages of high efficiency, environmental friendliness, and cost-effectiveness, the YJ-06 multifunctional dry ice cleaning machine is redefining the cleaning standards for wave soldering equipment and providing strong support for the sustainable development of the electronics manufacturing industry.
