Product Application

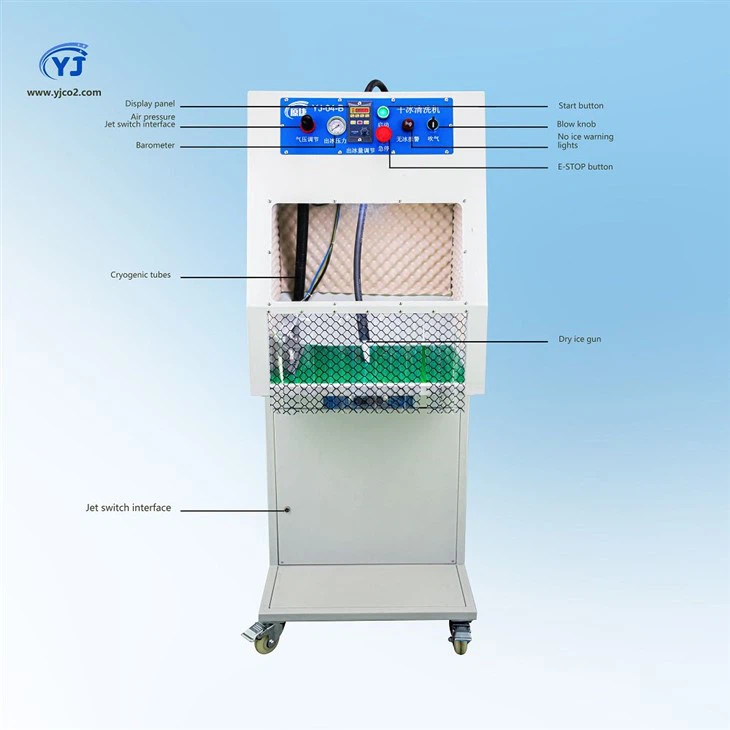

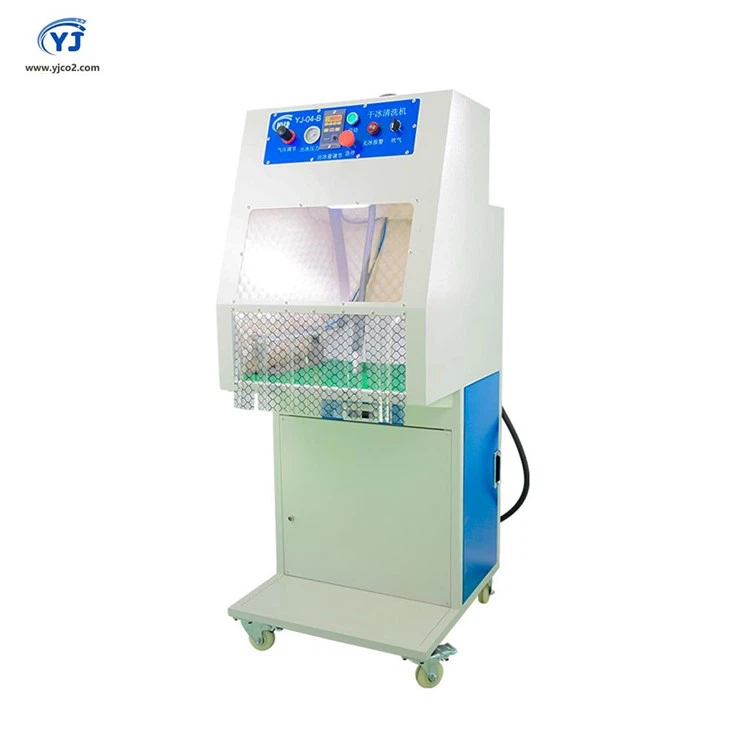

The dust-proof integrated dry ice cleaning machine is specifically designed for the electronics and semiconductor industries. It uses dry ice pellets to rapidly impact the surfaces of PCBA (Printed Circuit Board Assembly) and semiconductors to achieve cleaning, while also providing antistatic and dust removal functions. Traditional cleaning methods often struggle to effectively clean PCBA and semiconductor surfaces due to the presence of numerous tiny packages and solder joints, and may even cause damage. In contrast, dry ice cleaning removes dirt, grease, solder residues, and other contaminants from the surface of PCBA through high-speed impact without using any chemicals.
In semiconductor manufacturing, even microscopic dust particles, bacteria, and other contaminants can severely affect product performance, potentially causing issues such as short circuits, electrical failures, and signal interference. The dust-proof integrated dry ice cleaning machine can effectively control the generation and spread of these contaminants during the cleaning process, thereby ensuring the quality and performance of semiconductor products.
Specifications
|
Product model |
YJ-04-12 |
|
Product size |
117*77*205cm |
|
Net weight (N.G) |
224kg |
|
Voltage and current |
AC110-240V (50-60HZ) /2.0A(Customizable) |
|
Motor rated power |
400W |
|
Floor area |
1.0㎡ |
|
Minimum operation area |
2.0㎡ |
|
Moving mode: |
wheel |
|
Control mode: |
automatic |
|
Dry ice particle size |
0.05-0.1mm&0.2-0.6mm adjustable |
|
Ice output adjustment range |
0-0.65KG/MIN |
|
Ice output pressure adjustment range |
0.25-1.0MPA |
|
Dry ice particle adjustment range |
0.05-0.6MM |
|
Effective spray distance |
50-200MM |
|
Ice adding cycle |
30-150MIN/time |
|
Ice mixing method |
knife spiral cutting + ice roller with ice |
Product features and applications
The dust-proof integrated dry ice cleaning machine offers several key advantages in the electronics and semiconductor industries, including environmental friendliness, residue-free cleaning, non-abrasive cleaning, safety, and enhanced production efficiency.
Environmental Friendliness and Residue-Free Cleaning:
During the dry ice cleaning process, dry ice pellets quickly sublimate into gas, leaving no residue behind. This eliminates the risk of secondary pollution, making the process environmentally friendly.
Non-Abrasive Cleaning:
Dry ice cleaning does not cause damage to components, as the pellets transition directly from a solid to a gas without generating any physical impact. This ensures that parts do not experience wear or mechanical stress.
Safety:
The dry ice cleaning process does not produce sparks or static electricity, and it effectively controls dust, ensuring safety during the cleaning process. This makes it particularly suitable for cleaning sensitive equipment like semiconductors.
Improved Production Efficiency:
The dust-proof integrated dry ice cleaning machine can be seamlessly integrated into semiconductor manufacturing cleanrooms, allowing for online cleaning without halting production. This saves time, improves production efficiency, and reduces cleaning costs.
Additionally, dry ice cleaning technology effectively removes dirt, contaminants, and oxidation layers from the surfaces of electronic components, improving product quality and production efficiency. In the semiconductor ceramic substrate industry, dry ice cleaning has become an important cleaning method due to its efficiency and environmental benefits. The application of dry ice cleaning technology in removing burrs from chips provides a high-efficiency, eco-friendly solution for the semiconductor industry, avoiding water damage associated with traditional cleaning methods while maintaining equipment precision and reducing overall costs.
Our Services
1. Good knowledge on different market can meet special requirements.
01
2. Real manufacturer with our own factory located in Dongguan China
02
3. Strong professional technical team ensure to produce the top quality products.
03
4. Special cost control system ensure to provide the most favorable price.
04
5. We have rich experience in the research and development and manufacturing of dry ice cleaning machines.
05
Dry ice cleaning maintenance
Maintenance of dust-proof integrated dry ice cleaning machine
1,Daily Maintenance
Regularly check the power cords and air hoses of the equipment for any damage during daily use. If any damage is found, replace them promptly. Additionally, keep the exterior surface of the machine clean to prevent the accumulation of dust and dirt.
2,Cleaning Maintenance
Internal components of the dry ice cleaning machine, such as the nozzle and valve body, should be cleaned regularly. Use alcohol or a specialized cleaning agent to wipe these parts, ensuring they remain clean.
3,Storage Maintenance
When the dry ice cleaning machine is not in use, store it in a dry, well-ventilated area, avoiding direct sunlight and humid environments. Regularly check the storage conditions to ensure the equipment is always in good condition.
4,Repair and Maintenance
If any faults or abnormal conditions are detected during use, immediately stop the machine for inspection. If necessary, contact a professional for repair and maintenance.
